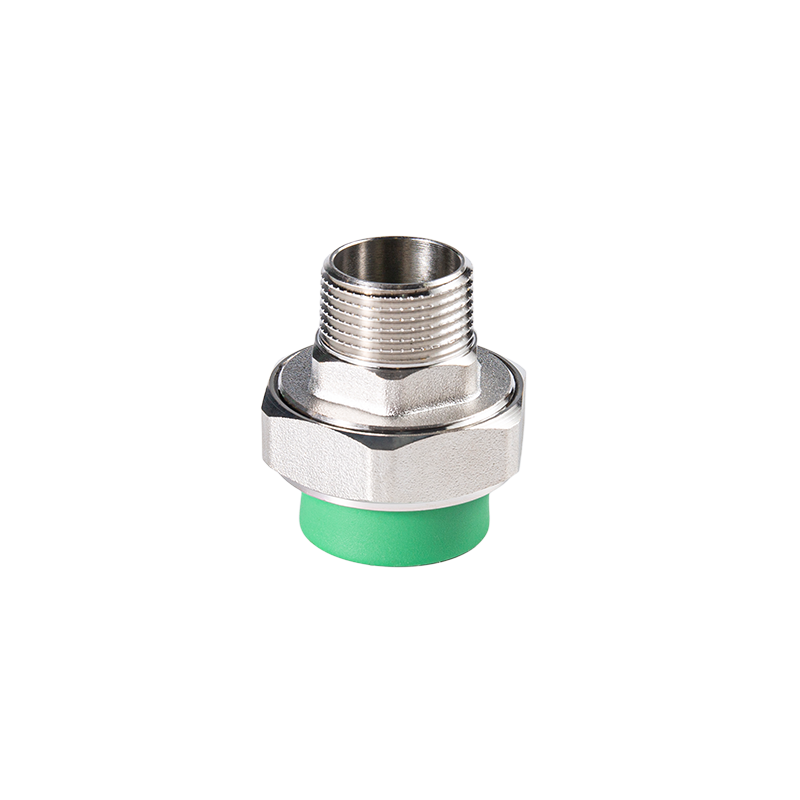

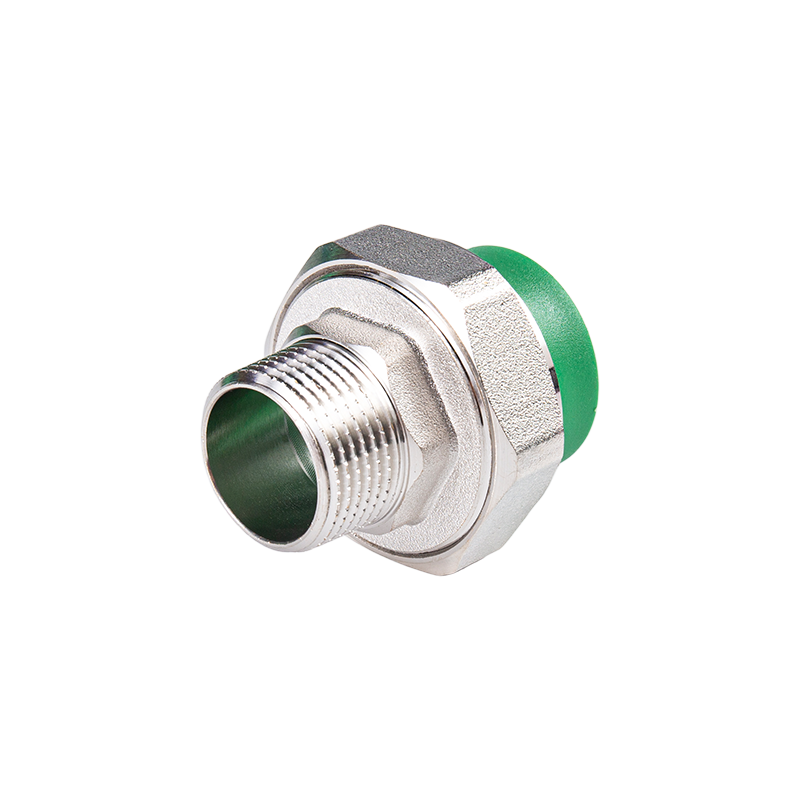

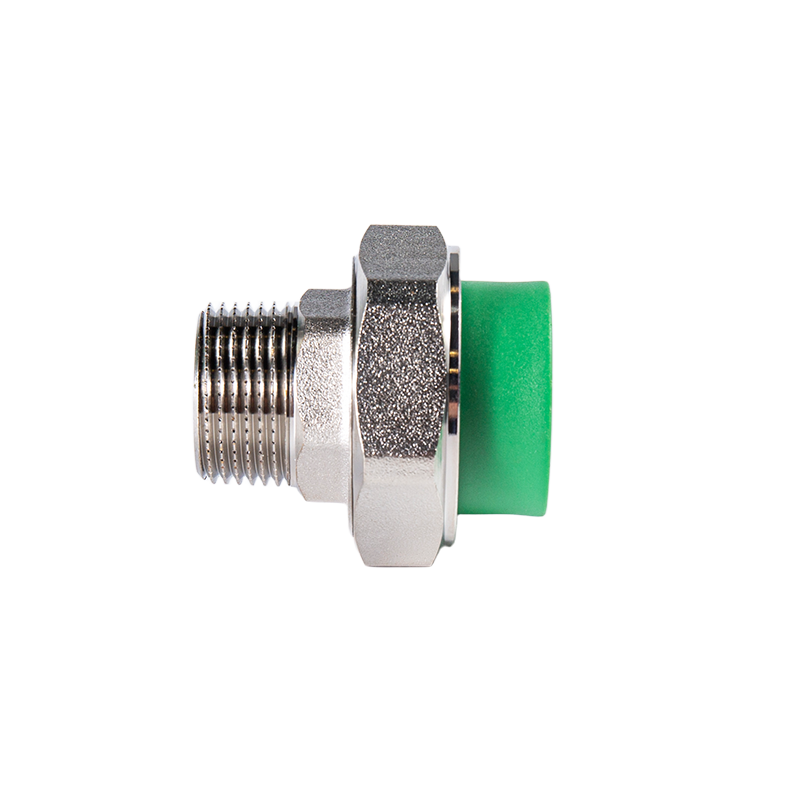

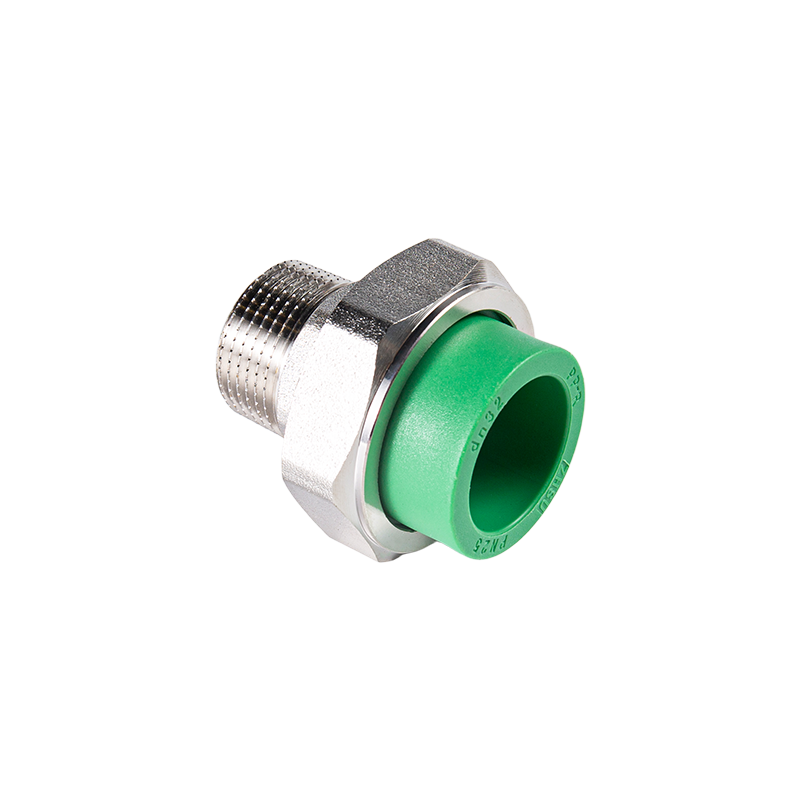

PPR Male Threaded Union

ZHSU PPR Male Threaded Union connects a male threaded fitting or valve on one end and inserts into PPR pipe on the other. Tighten the union nut for a secure, watertight seal. Designed to join two PPR pipes straight, enabling easy disassembly and reassembly.
Features: Rust-resistant, heavy-duty brass inserts, easy, convenient installation. Crafted via advanced processes, supports max size 63 x 2'' & PN2.5 MPa pressure. Perfect for residential, commercial & industrial projects—reliable and user-friendly.

Get A Quote
PREV：No previous articleNEXT：PPR Female Threaded Union
PRODUCT DESCRIPTION PRODUCT SPECIFICATIONS TEST & INSPECTION Contact Us

Product Description

ZHSU PPR Male Threaded Union is a high-performance PPR fitting engineered for durable and leak-free plumbing connections. This versatile PPR fitting features a dual-function structure, integrating a male threaded end for secure connection with threaded valves and metal fittings, and a socket end for seamless fusion welding with standard PPR pipes.

By tightening the precision-machined union nut, users can achieve a fully tight, watertight seal that prevents water leakage under high pressure. Designed for straight inline pipe connections, this threaded union allows effortless disassembly, inspection, and reinstallation, greatly simplifying pipeline maintenance and system adjustments.

Embedded with heavy-duty, rust-proof brass inserts, the fitting delivers superior corrosion resistance, stable mechanical performance, and extended service life. Manufactured with advanced injection molding and precision processing technology, it supports a maximum size of 63 x 2 inches and withstands working pressure up to PN2.5 MPa.

Ideal for residential, commercial, and industrial water supply systems, the ZHSU PPR Male Threaded Union offers exceptional reliability, easy installation, and long-term operational stability for all plumbing project applications.

SPECIFICATIONS

Item Name

PPR male threaded Union

Size

20- 63 mm

Pressure

Pn 2.5Mpa

Material

Polypropylene random, PPR beta

Inserts

Brass

Colour

Green, gray, white, purple

Connection

BSP, NPT thread

Standard

DIN8077, DIN8078 ,ISO16962

Item name

Product Code

Size (mm)

Packing (pc/ctn)

Vol per Ctn (cbm)

Weight (kg/pc)

Male threaded Union

RUW20

20×1/2"

200

0.0233

0.102

RUW25

25×3/4"

150

0.0233

0.137

RUW32

32x1"

100

0.0233

0.206

RUW40

40x1-1/4"

48

0.0233

0.394

RUW50

50x1-1/2"

32

0.0233

0.646

RUW63

63x2"

24

0.0233

1.023
