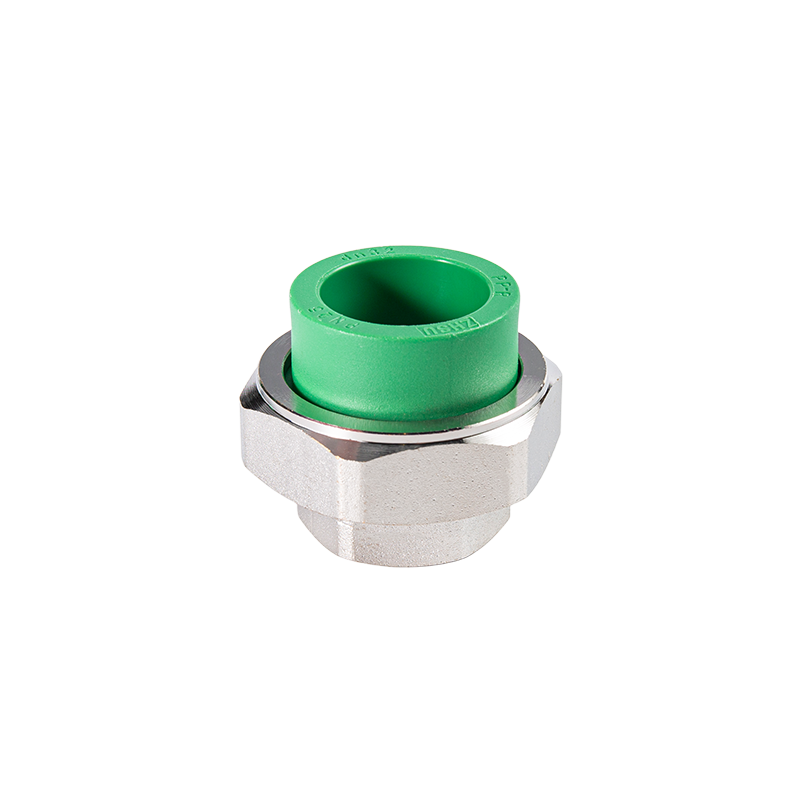

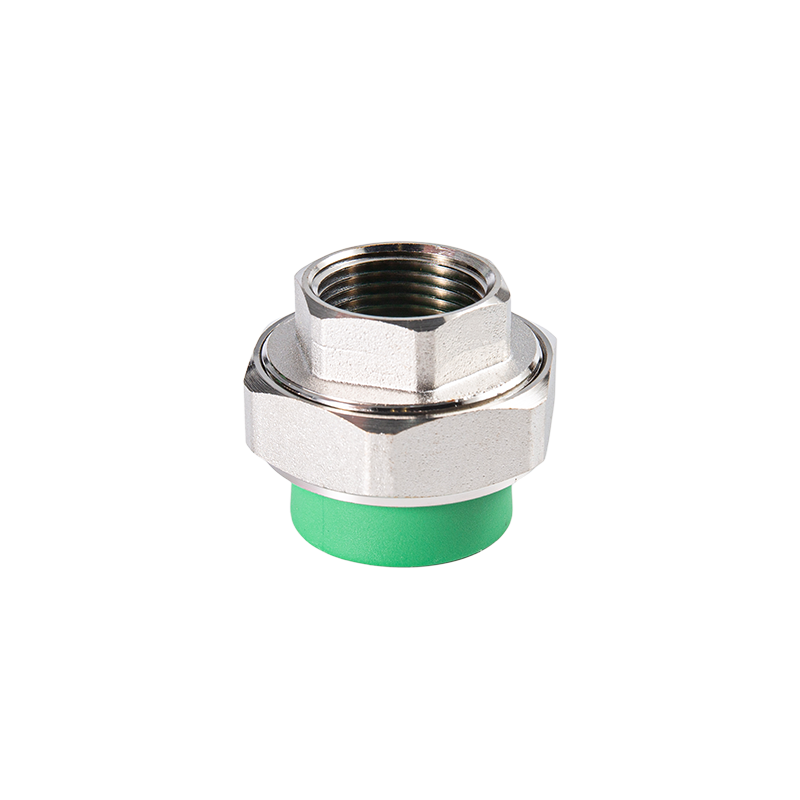

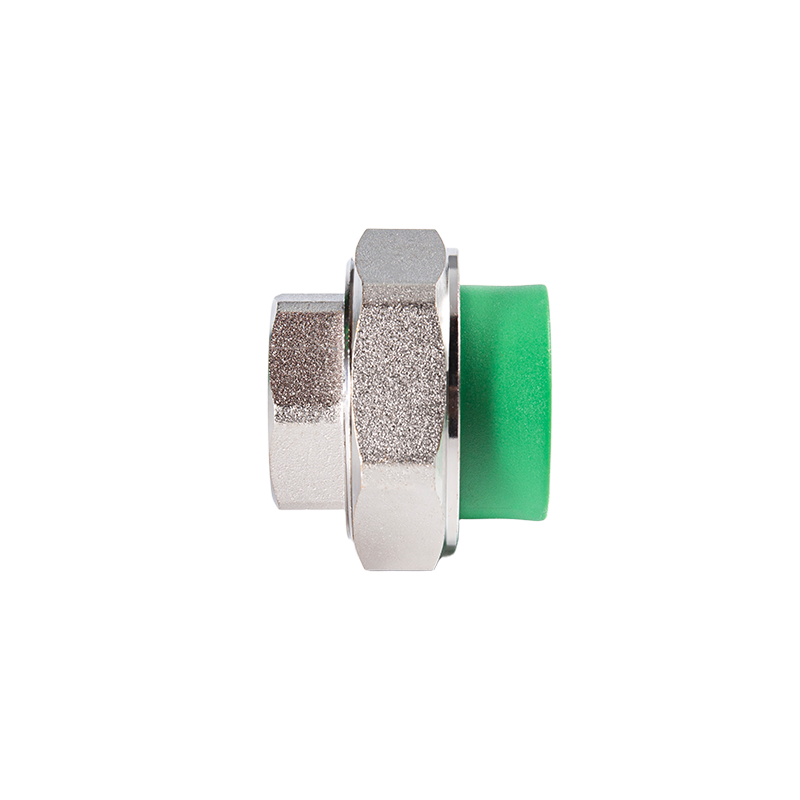

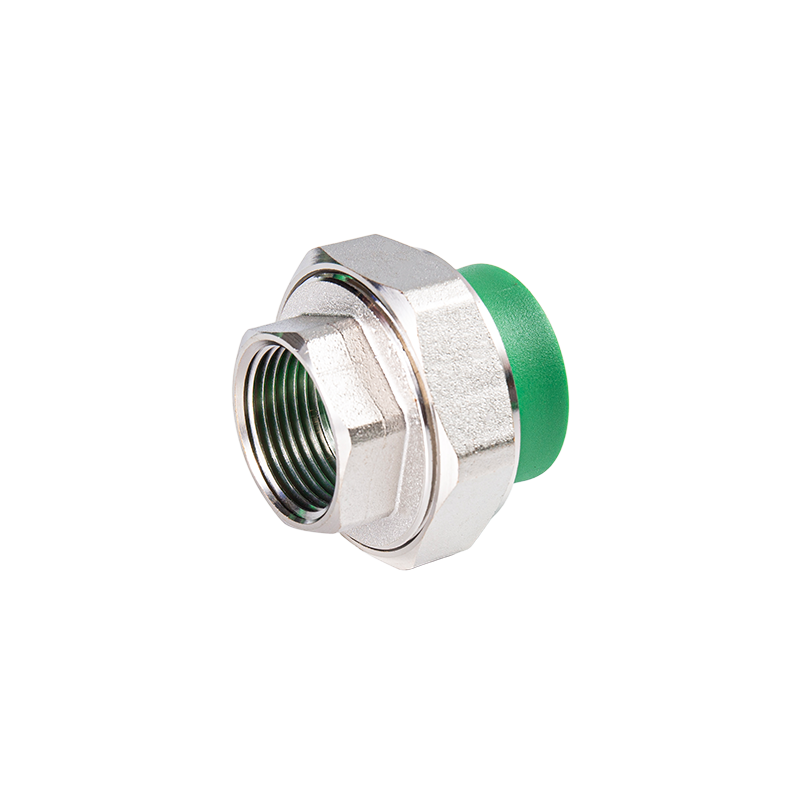

PPR Female Threaded Union

ZHSU PPR Female Threaded Union is a high-pressure plumbing fitting. ZHSU PPR Female Threaded Union connects a male threaded fitting/valve on one end and inserts into PPR pipe on the other. Tighten the union nut for a secure, watertight seal. Designed to join two PPR pipes straight, enabling easy disassembly and reassembly. Features include rust-resistant, heavy-duty brass inserts and easy installation. Crafted via advanced processes, supports max size 63 x 2'' & PN2.5 MPa pressure. Perfect for residential, commercial & industrial projects—reliable and user-friendly.

Get A Quote
PRODUCT DESCRIPTION PRODUCT SPECIFICATIONS TEST & INSPECTION Contact Us

Product Description

ZHSU PPR Female Threaded Union is a premium high-pressure PPR fitting widely used in water pipeline systems. This professional PPR fitting features a dual-end design: one side connects perfectly with male threaded valves and fittings, while the other end serves as a socket for direct PPR pipe insertion.

Simply fasten the union nut to achieve a firm connection and full watertight performance. It enables straight pipeline connection, convenient disassembly, and repeated reassembly for later maintenance. Built with heavy-duty anti-rust brass inserts, it guarantees long-lasting durability and effortless installation.

Manufactured with sophisticated production technology, it supports a maximum size of 63 x 2'' and working pressure up to PN2.5 MPa. Ideal for residential, commercial, and industrial plumbing projects, this ZHSU threaded union delivers stable performance and great ease of use.

SPECIFICATIONS

Item Name

PPR female threaded Union

Size

20- 63 mm

Pressure

Pn 2.5Mpa

Material

Polypropylene random, PPR beta

Inserts

Brass

Colour

Green, gray, white, purple

Connection

BSP, NPT thread

Standard

DIN8077, DIN8078 ,ISO16962

Item name

Product Code

Size (mm)

Packing (pc/ctn)

Vol per Ctn (cbm)

Weight (kg/pc)

PPR female threaded Union

RUN20

20x1/2"

200

0.0233

0.098

RUN25

25x3/4"

150

0.0233

0.129

RUN32

32x1"

100

0.0233

0.208

RUN40

40x1-1/4"

56

0.0233

0.342

RUN50

50x1-1/2"

36

0.0233

0.602

RUN63

63x2"

24

0.0233

0.963
