PPR Male Threaded Elbow

PPR male threaded elbow is a versatile connector for PPR & Metal systems.

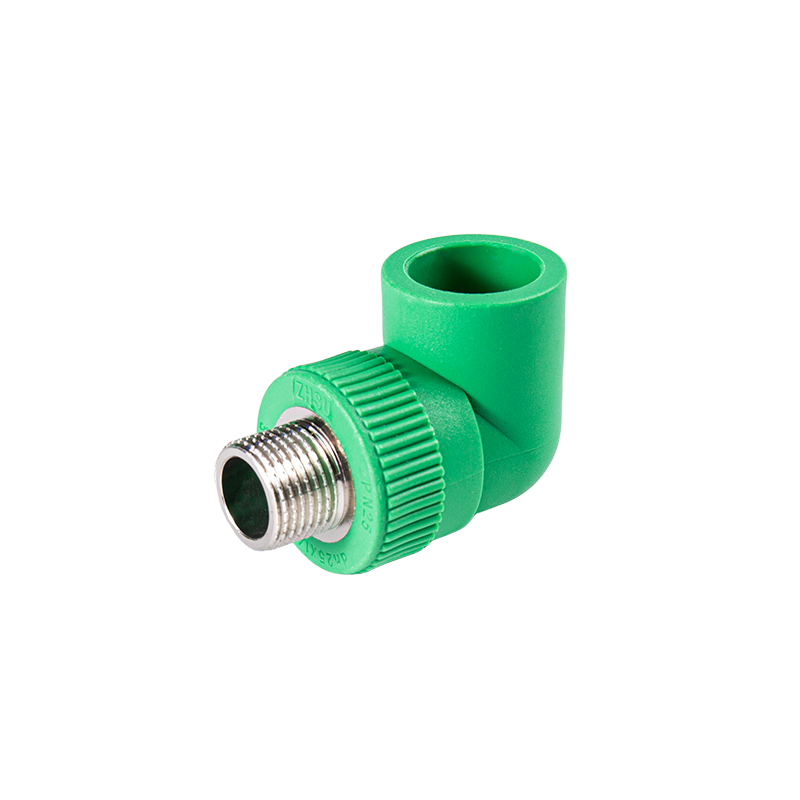

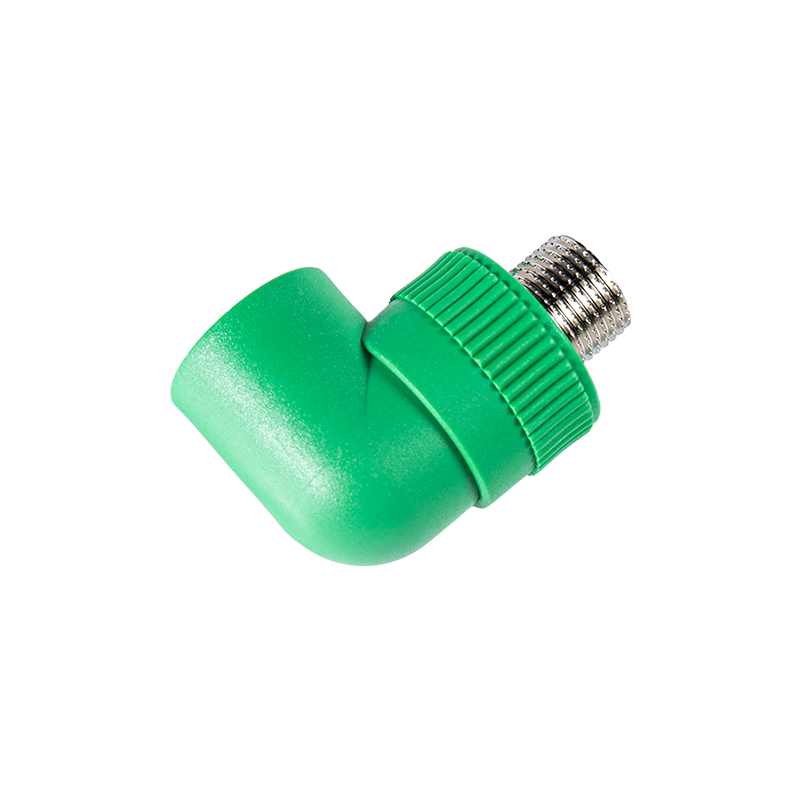

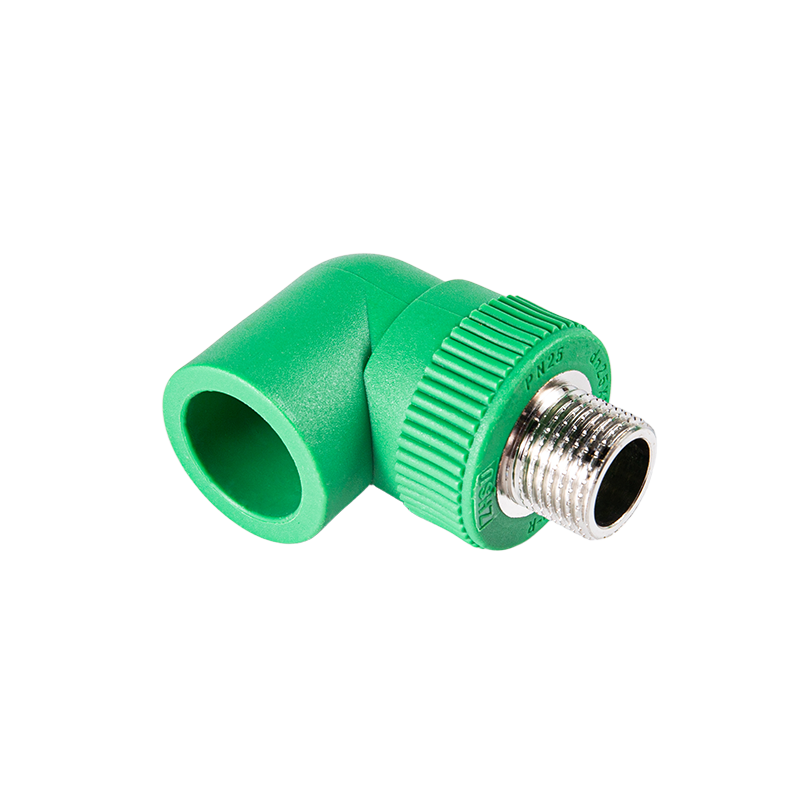

ZHSU PPR male threaded elbow combines a 90-degree plastic elbow with male threaded brass inserts, designed to connect pipes in different directions. One end is PPR plastic, while the other features male threaded metal in NPT or BSP standard, enabling seamless connection between PPR pipes and metal pipes/fittings.
Crafted from 100% virgin PPR material and high-quality nickel-plated brass inserts, this fitting boasts excellent rust resistance, sturdy heavy-weight brass inserts, easy installation, and reliable pipe direction adjustment.
It is widely applied in hot and cold water systems, purified water supply systems, central air conditioning systems, and solar energy water supply pipelines, delivering durable and stable performance for diverse plumbing needs.

Get A Quote
PREV：PPR Duplex Female ElbowNEXT：PPR Female Threaded Elbow
PRODUCT DESCRIPTION PRODUCT SPECIFICATIONS TEST & INSPECTION Contact Us

Product Description

ZHSU PPR male threaded elbow is a highly functional PPR fitting ideal for linking PPR and metal pipeline systems.

This premium PPR fitting integrates a 90-degree elbow body with embedded male threaded brass inserts to realize pipeline direction conversion. It features a PPR fusion end on one side and standard NPT or BSP male thread on the other, enabling a smooth and firm connection between PPR pipes and various metal pipes and pipe accessories.

Made of 100% virgin PPR raw material and high-quality nickel-plated brass inserts, this professional PPR fitting comes with strong rust resistance, robust thickened brass components, and simple installation, while achieving stable and flexible pipe direction switching.

It is widely suitable for hot and cold water supply systems, purified water pipelines, central air conditioning piping, and solar water supply circuits, providing long-lasting and dependable performance to meet all kinds of plumbing project demands.

SPECIFICATIONS

Item Name

PPR male threaded elbow

Size

20-63mm

Pressure

Pn 2.5Mpa

Material

Polypropylene random, PPR beta

Inserts

Brass

Colour

Green, gray, white, purple

Connection

Socket fusion, BSP, NPT

Standard

DIN8077, DIN8078 ,ISO15874

Item name

Product Code

Size (mm)

Packing (pc/ctn)

Vol per Ctn (cbm)

Weight (kg/pc)

PPR male threaded elbow

RBW20

20x1/2"

180

0.0233

0.071

RBW20-1

20x3/4"

140

0.0233

0.095

RBW25

25x1/2"

160

0.0233

0.076

RBW25-1

25x3/4"

140

0.0233

0.102

RBW32

32x1/2"

120

0.0233

0.099

RBW32-1

32x3/4"

110

0.0233

0.113

RBW32-2

32x1"

70

0.0233

0.180

RBW40

40x1-1/4"

40

0.0233

0.339

RBW50

50x1-1/2"

28

0.0233

0.428

RBW63

63x2"

16

0.0233

0.674
