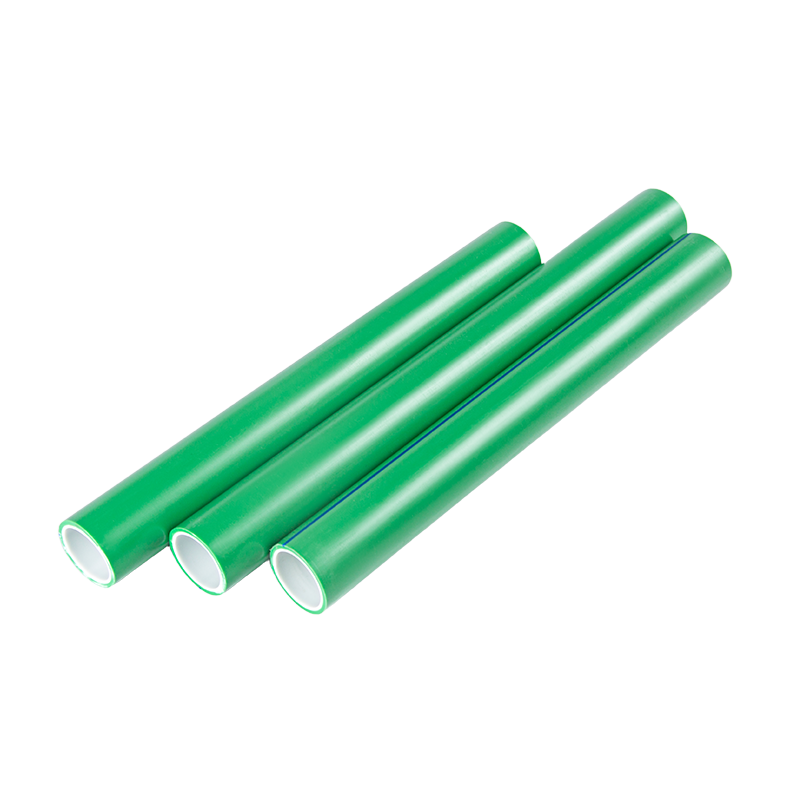

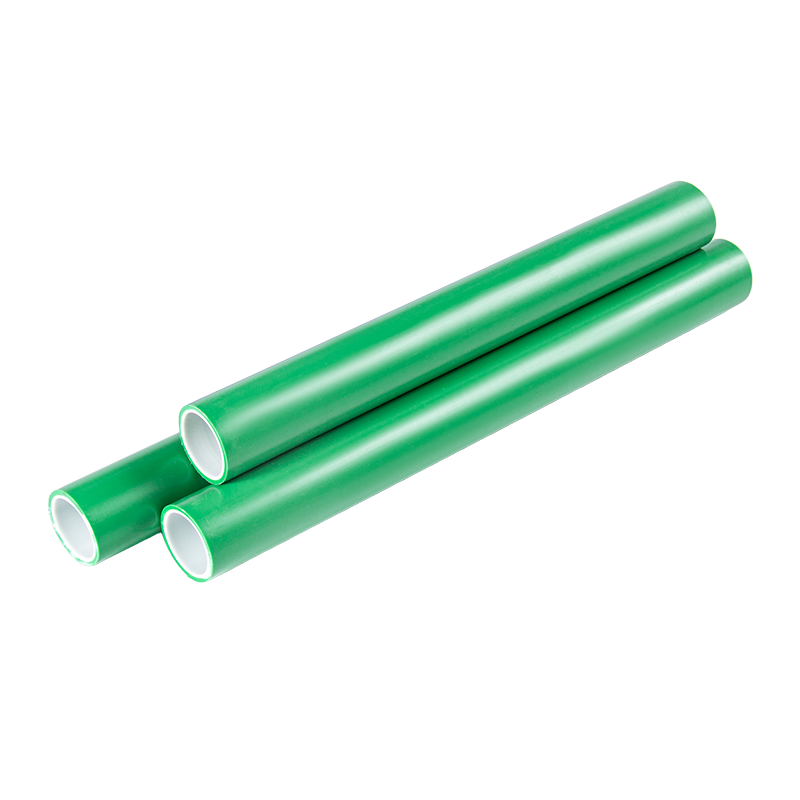

Double Layer PPR Pipe

A Double Layer PPR Pipe has an inner and outer layer, combining benefits like inner antibacterial properties and light-blocking to prevent algae, with an outer layer for UV resistance or color coding, making them great for cold water and outdoor use.They're known for hygiene, durability, and efficient fluid transport in residential, commercial, and industrial plumbing systems, joined by heat fusion.

Get A Quote
PRODUCT DESCRIPTION PRODUCT SPECIFICATIONS APPLICATION TEST & INSPECTION Contact Us

Product Description

A double-layer PPR pipe consists of two distinct inner and outer layers, integrating advantages such as antibacterial performance on the inner surface and light-shielding capability to inhibit algae growth. Its outer layer is designed to resist UV radiation or enable color identification, making it highly suitable for cold water applications and outdoor installations. Renowned for their sanitation, long-lasting performance, and smooth fluid conveyance, these pipes are widely used in residential, commercial, and industrial plumbing projects, with connections achieved through heat fusion technology.

PRODUCT SPECIFICATIONS

● Material: Polypropylene Random Copolymer (PPR)

● Diameter Range: 20mm (1/2") up to 63mm (2")

● Pressure Rating: PN10/S5 to PN20/S2.5

● Color Options: white +Green, green+white, white + blue orcustomizable colors

● Standard Length: 3m, 4m, or 5.8m per pipe

● Compliance Standards: ISO 15874, DIN 8077/8078, GB/T 18742

● Working Temperature: Up to 70°C

● Service Life: Up to 50 years

● Connection Methods: Socket fusion, flange connection and threaded joints for PPR pipes

Size (mm)

Size (inch)

PN10

PN12.5

PN16

PN20

Thickness (mm)

Weight  (kg/meter)

Thickness (mm)

Weight  (kg/meter)

Thickness (mm)

Weight  (kg/meter)

Thickness (mm)

Weight  (kg/meter)

20

1/2"

2

0.114

2.3

0.127

2.8

0.148

3.4

0.172

25

3/4"

2.3

0.163

2.8

0.191

3.5

0.231

4.2

0.267

32

1"

2.9

0.259

3.6

0.313

4.4

0.371

5.4

0.436

40

1 1/4"

3.7

0.411

4.5

0.488

5.5

0.578

6.7

0.676

50

1 1/2"

4.6

0.631

5.6

0.750

6.9

0.894

8.3

1.041

63

2"

5.8

0.993

7.1

1.209

8.6

1.404

10.5

1.655

APPLICATION

1. Potable hot and cold water piping systems for residential complexes, commercial structures, hospitals, hotels, and other similar establishments.

2. Heating piping systems for various settings.

3. Transportation of aggressive industrial fluids.

4. Agricultural and horticultural irrigation and water supply.

5. Solar energy facilities and related piping installations.

TEST & INSPECTION

TEST

REQUIREMENT

RESULT

Visual Inspection

There is no color aberration for PPR pipe, PPR pipe surface must be smooth, without hollow, bubble, visible impurity or any other defect

Qualified

Non-Transparency Test

PPR pipe shouldn’t be transparent

Light Proof

Vertical Reversion Rate

≤2%

0.7

 Impact Test

Damage rate < 10% of samples

No damage

Hydro-static Pressure Test

16 MPa pressure for 1 hour under 20℃ temperature

No crack, no leakage

4.2 MPa pressure for 22 hours under 95℃ temperature

No crack, no leakage

3.8 MPa pressure for 165 hours under 95℃ temperature

No crack, no leakage

3.5 Mpa pressure for 1000 hours under 95℃ temperature

No crack,no leakage
