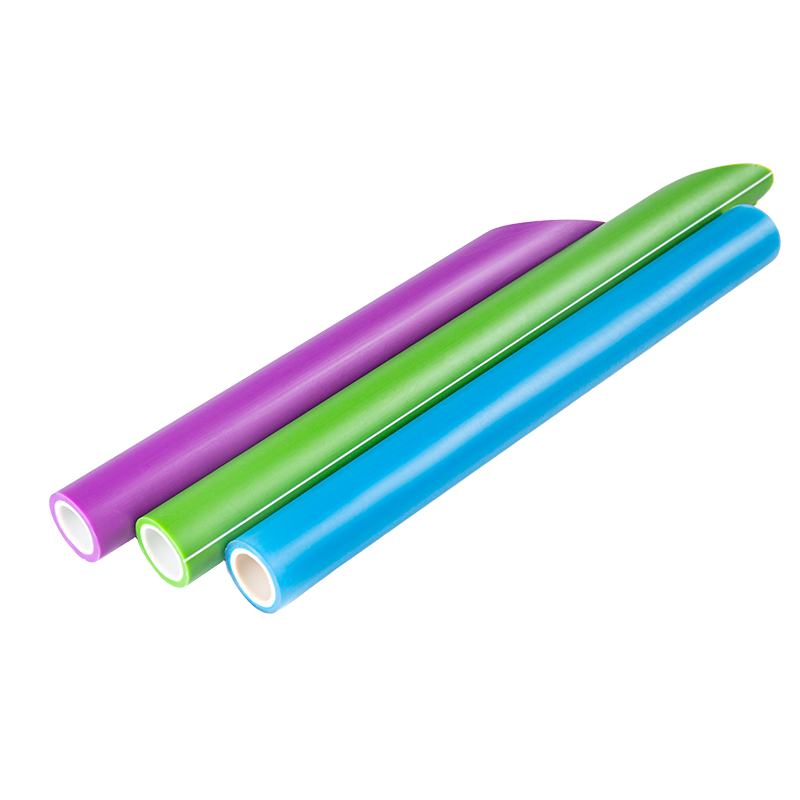

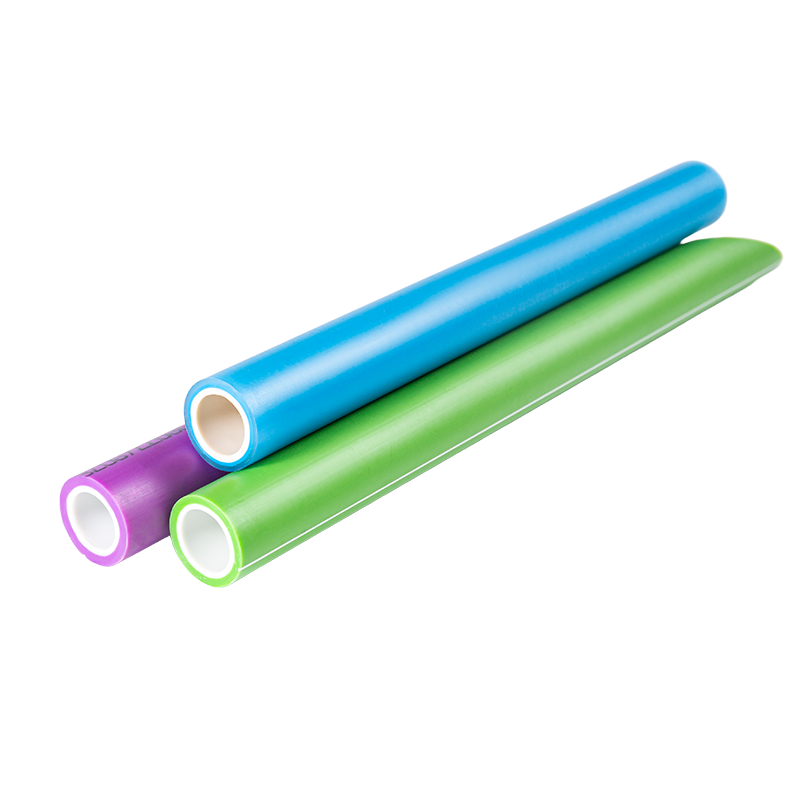

Antibacterial PPR Pipe

Antibacterial PPR (Polypropylene Random Copolymer) pipes are advanced water pipes with built-in agents, like silver ions, infused during manufacturing to prevent microbial growth on the inner surface, ensuring cleaner, safer drinking water by stopping bacteria from forming biofilms, ideal for homes, hospitals, and food facilities needing high hygiene. These hygienic pipes often use nano-materials, offer light-blocking properties, and maintain antibacterial effectiveness long-term, enhancing water quality without affecting taste or smell.

Get A Quote
PRODUCT DESCRIPTION PRODUCT SPECIFICATIONS APPLICATION TEST & INSPECTION Contact Us

Product Description

ZHSU PPR antibacterial pipes are applicable for both hot and cold potable water systems. They feature a double-layer dense structure, where the inner antibacterial layer is made of high-crystalline nano-level active materials, and the outer layer is crafted from food-grade PPR raw materials.

These PPR antibacterial pipes come with a light-blocking function and are opaque, which prevents water inside the pipes from easily breeding bacteria, inhibits microbial photosynthesis, and stops moss from growing on the pipe walls. Meanwhile, they boast high strength, a low linear expansion coefficient, and a 50-year service life.

The outer layer of our ZHSU PPR antibacterial pipes is made entirely of new raw materials sourced from Borealis and South Korea. The inner antibacterial layer can release silver ions (Ag ions) that eliminate bacteria inside the pipes, ensuring the health and safety of water and other conveyed fluids, and making the pipes highly hygienic and non-toxic.

PRODUCT SPECIFICATIONS

● Material: Polypropylene Random Copolymer (PPR)

● Diameter Range: 20mm (1/2") up to 63mm (2")

● Pressure Rating: PN10/S5 to PN20/S2.5

● Color Options: white +Green, green+white, white + blue orcustomizable colors

● Standard Length: 3m, 4m, or 5.8m per pipe

● Compliance Standards: ISO 15874, DIN 8077/8078, GB/T 18742

● Working Temperature: Up to 70°C

● Service Life: Up to 50 years

● Connection Methods: Socket fusion, flange connection and threaded joints for PPR pipes

Size (mm)

Size (inch)

PN10

PN12.5

PN16

PN20

Thickness (mm)

Weight  (kg/meter)

Thickness (mm)

Weight  (kg/meter)

Thickness (mm)

Weight  (kg/meter)

Thickness (mm)

Weight  (kg/meter)

20

1/2"

2

0.114

2.3

0.127

2.8

0.148

3.4

0.172

25

3/4"

2.3

0.163

2.8

0.191

3.5

0.231

4.2

0.267

32

1"

2.9

0.259

3.6

0.313

4.4

0.371

5.4

0.436

40

1 1/4"

3.7

0.411

4.5

0.488

5.5

0.578

6.7

0.676

50

1 1/2"

4.6

0.631

5.6

0.750

6.9

0.894

8.3

1.041

63

2"

5.8

0.993

7.1

1.209

8.6

1.404

10.5

1.655

APPLICATION

1. Potable hot and cold water piping systems for residential complexes, commercial structures, hospitals, hotels, and other similar establishments.

2. Heating piping systems for various settings.

3. Transportation of aggressive industrial fluids.

4. Agricultural and horticultural irrigation and water supply.

5. Solar energy facilities and related piping installations.

TEST & INSPECTION

TEST

REQUIREMENT

RESULT

Visual Inspection

There is no color aberration for PPR pipe, PPR pipe surface must be smooth, without hollow, bubble, visible impurity or any other defect

Qualified

Non-Transparency Test

PPR pipe shouldn’t be transparent

Light Proof

Vertical Reversion Rate

≤2%

0.7

 Impact Test

Damage rate < 10% of samples

No damage

Hydro-static Pressure Test

16 MPa pressure for 1 hour under 20℃ temperature

No crack, no leakage

4.2 MPa pressure for 22 hours under 95℃ temperature

No crack, no leakage

3.8 MPa pressure for 165 hours under 95℃ temperature

No crack, no leakage

3.5 MPa pressure for 1000 hours under 95℃ temperature

No crack, no leakage
